An oil-free and compact pressure source to deliver a precise airflow for various laboratory applications. It is designed to be used with the Elveflow OB1 controller.
General

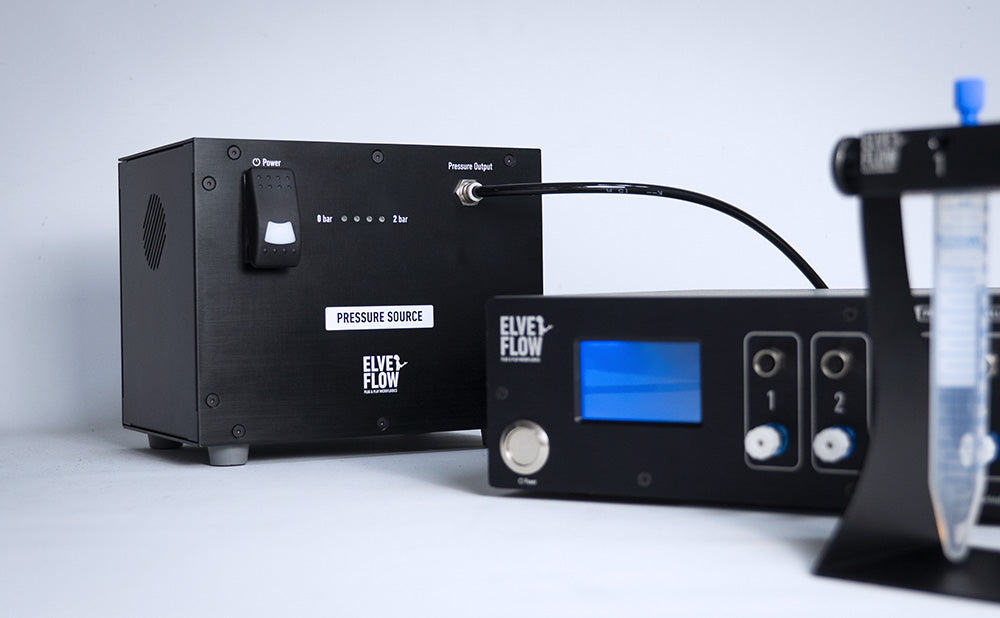

The Elveflow Pressure Source is a compact and oil-free compressor, easily integrable into a laboratory thanks to its small footprint. Delivering a steady air pressure from 0 to 2 bar, it is ideal for use with the Elveflow OB1 pressure regulator with channels of 0 - 200 mbar or 0 - 2000 mbar.
Content
1x pressure source 0-2 bar
1x power supply unit (24 VDC)
2 m of pneumatic tubing 6 mm OD
Specifications
Performances
| Max. pressure |
3 bar (44 psi) |
| Air flow rate (at operating pressure) |
- |
| Noise level |
< 53 dB |
Mechanical specifications
Dimensions (l x w x h)
|
161 x 194 x 195 mm |
Weight
|
2 kg
|
Pneumatic connection
|
6 mm push-in
|
| Internal receiver volume |
350 mL |
| Operating temperature |
5-40 °C |
| Operating humidity |
up to 80% |
Electrical specifications
Input voltage
|
24 VDC
|
AC supply frequency
|
50-60 Hz
|
Pressure supply voltage
|
110-240 V
|
| Max. current consumption |
1.5 A (typical: 0.8 A) |
| Max. power consumption |
36 W |
Documentation
? Elveflow Pressure Pump and Vacuum Pump (EPS / EVS)
