An oil-free and compact vacuum source for various laboratory applications. It is designed to be used with the Elveflow OB1 pressure controller.
General

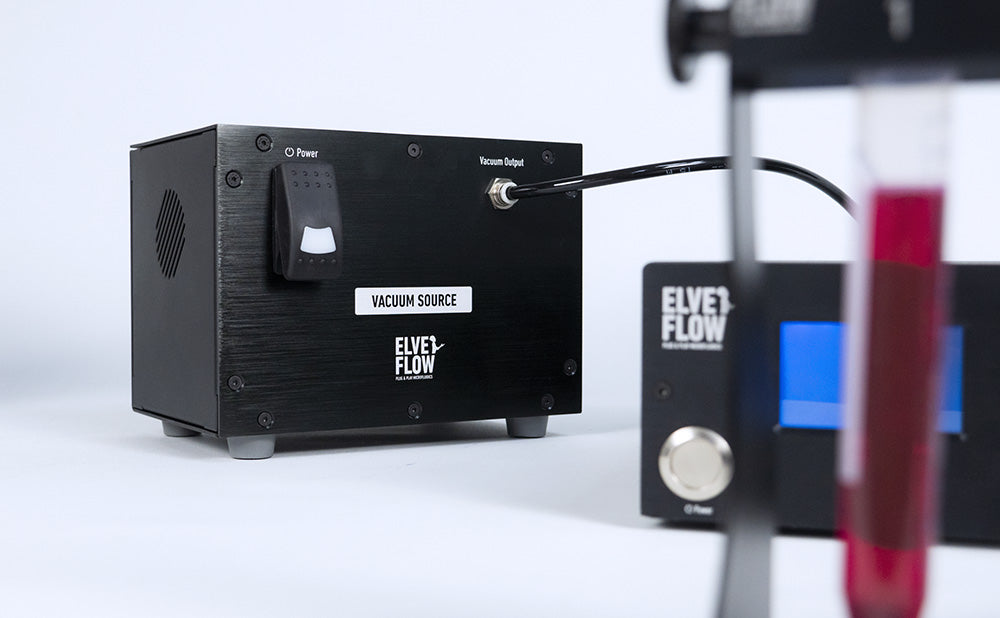

The Elveflow Vacuum Source is a compact and oil-free vacuum pump, easily integrable into a laboratory thanks to its small footprint. Delivering a steady air vacuum down to -850 mbar, it is ideal for use with the Elveflow OB1 pressure regulator with channels of -900 - 1000 mbar or -900 - 6000 mbar.
Content
1x vacuum source
1x power supply unit (24 VDC)
2 m of pneumatic tubing 6 mm OD
Specifications
Performances
| Vacuum (relative) |
-850 mbar (13 psi) |
| Vacuum (absolute) |
150 mbar |
| Pumping speed |
-
|
| Noise level |
< 54 dB
|
Mechanical specifications
| Dimensions (l x w x h) |
161 x 194 x 195 mm |
| Weight |
1.4 kg |
| Pneumatic connection |
6 mm push-in |
| Internal receiver volume |
250 mL |
| Operating temperature |
5-40 °C |
| Operating humidity |
up to 80% |
Electrical specifications
| Input voltage |
24 VDC |
| AC supply frequency |
50-60 Hz |
| Pressure supply voltage |
110-240 V |
| Max. current consumption |
1.5 A (typical: 0.8 A) |
| Max. power consumption |
36 W |
Documentation
? Elveflow Pressure Pump and Vacuum Pump (EPS / EVS)
