8 Straight Channels Chip - Luer
Rated 3.5/5 based on 11 customer reviews

8 Straight Channels Chip - Luer

This Straight Channel Chip by Microfluidic ChipShop features 8 parallel channels in various widths and includes Luer connections for leak-free inlet and outlet tubing junctions.
Available immediately
€42.50
This Straight Channel Chip by Microfluidic ChipShop features 8 parallel channels in various widths and includes Luer connections for leak-free inlet and outlet tubing junctions.

ChipShop chips are convenient, cost-effective, and reliable for all your experiments:

  • Luer connection molded with the chip: leak-free
  • Highly-resistant and optically clear material: PMMA (Polymethyl methacrylate)
  • Various sizes available
  • Standard microscope glass slide size



1x 8 straight channels chip with Luer ports

Reference CS-10001810 CS-10000060 CS-10001920
ChipShop reference Fluidic 157 Fluidic 431 Fluidic 1412
Number of channels 8
Channel width (µm) 100 2910 500
Channel depth (µm) 100
Cover lid thickness (µm) 175 140
Channel length (mm) 18
Material
PMMA Topas

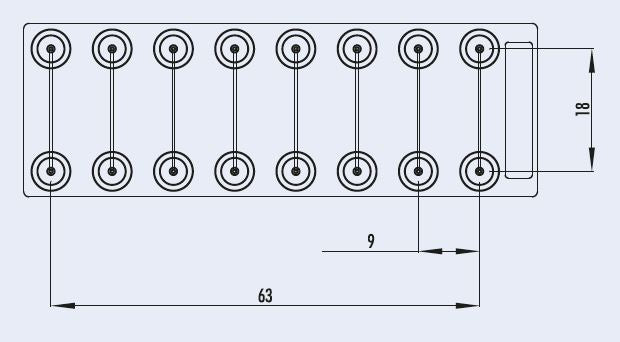

Dimensions of the 8 straight channels chip
