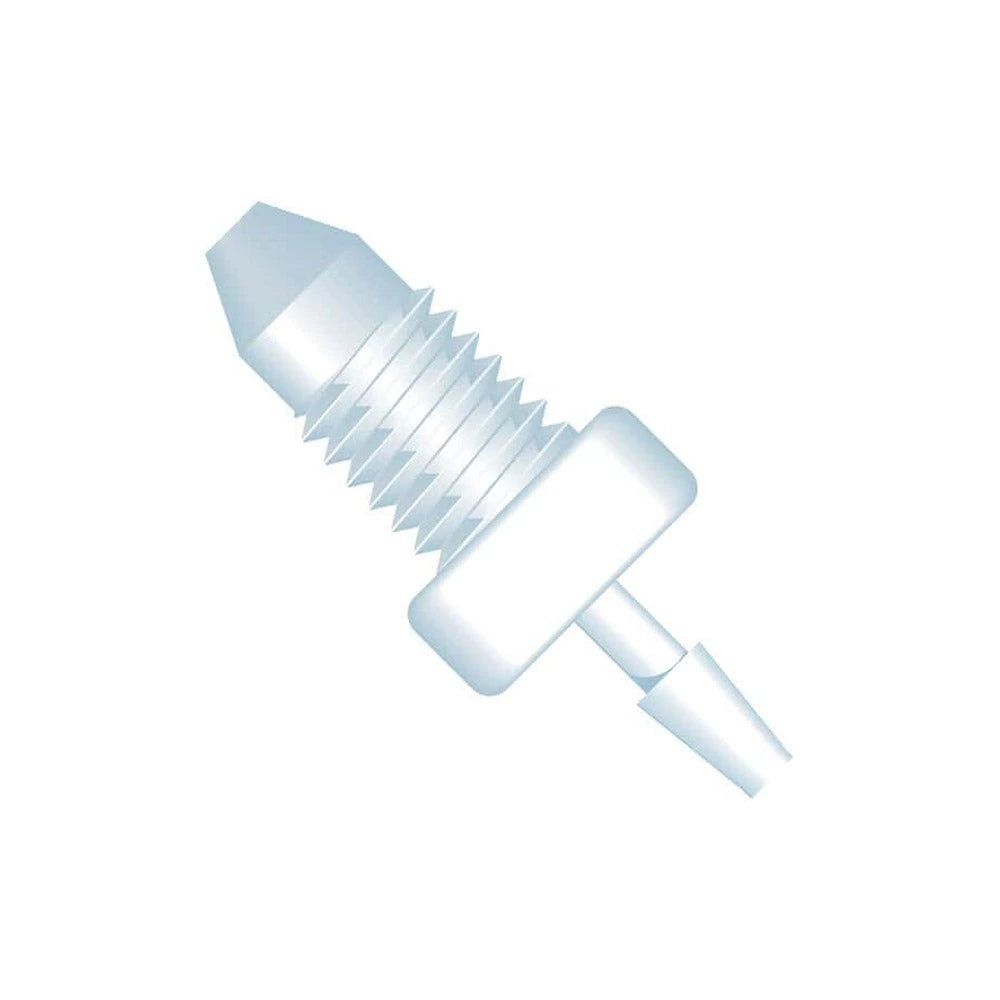

Easily connect soft-walled 1/16", 1/8" or 3/16" ID tubing to 10-32 threaded ports using these adapters. Available for coned or flat-bottom ports, they come in a pack of 10 units.
General
- Thread 10-32 port configuration: coned or flat-bottom
- For soft-walled (peristaltic) tubing ID: 1/16" (1.6 mm), 1/8" (3.2 mm) or 3/16" (4.8 mm)
These adapters make it easy to connect flexible tubing to any standard 10-32 coned or flat-bottom receiving port. Simply thread the adapter into a receiving port and slip tubing over the barbed end to create a reliable low pressure connection. Made from inert Tefzel® (ETFE) or PEEK, they ensure a wide chemical compatibility.
Tip: If the ID of your soft-walled tubing doesn't exactly match the size of the adapter on the barb end, always take an adapter that is larger than your tubing ID.
Content
10x Barbed to 10-32 male adapters for soft-walled tubing
Specifications
|
CIL-P-663 |
CIL-P-664 |
CIL-P-639 |
CIL-P-665 |
| Thread port configuration |
10-32 coned |
10-32 flat-bottom |
10-32 flat-bottom |
10-32 coned |
| For tubing ID |
1.6 mm (1/16") |
3.2 mm (1/8") |
1.6 mm (1/16") |
4.8 mm (3/16") |
| Material |
ETFE (Tefzel) |
ETFE (Tefzel) |
ETFE (Tefzel) |
ETFE (Tefzel) |
| Thru hole |
1.0 mm (0.040")
|
1.0 mm (0.040" |
0.50 mm (0.020") |
1.0 mm (0.040") |
Documentation
Check the chemical compatibilities for this product here: ETFE - Chemical Compatibility Chart
Check the chemical compatibilities for this product here: PEEK - Chemical Compatibility Chart
