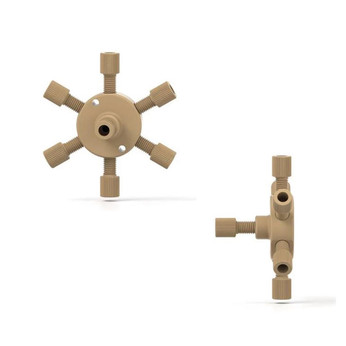

Manifold 7 Ports 10-32 Coned PEEK for 1/16" OD
- Product SKU: CIL-P-170
- Category: IDEX, Microfluidic Accessories, Microfluidic Splitters & Manifolds
A manifold to merge or split up to 6 flows coming from 1/16" OD tubing.
Combine different fluids into one or split one stream into several with this PEEK manifold. For easy handling, it already comes with fittings for 1/16" OD rigid tubing.
1x 7 ports manifold in PEEK, 10-32 coned ports
7x Fingertight PEEK fittings and PEEK ferrules 10-32 coned for 1/16" OD tubing
|For rigid tubing OD||1.6 mm (1/16")|
|Swept volume||2.2 µL|
|Thru hole||0.50 mm (0.020")|
|Thread port configuration||10-32 Coned|
|Pressure rating||345 bar (5000 psi)|
