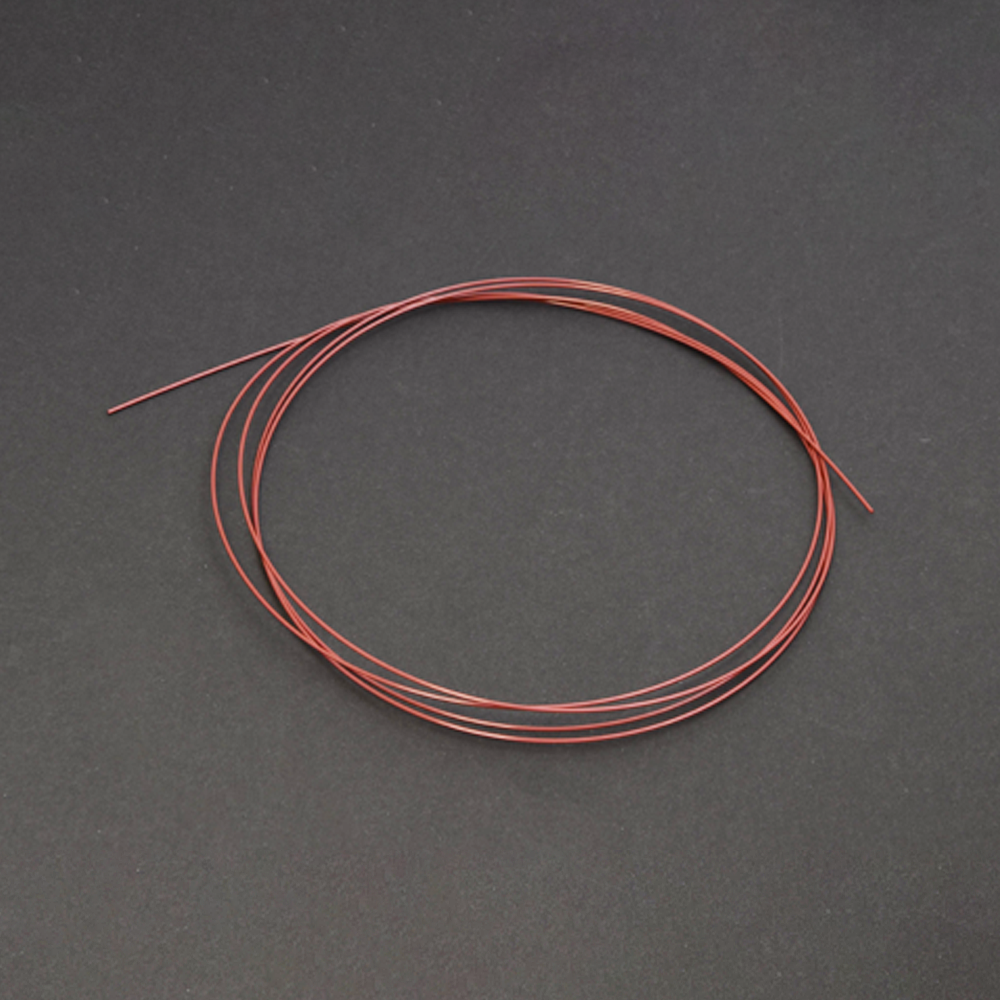

This 1/32“ OD PEEK tubing from ChipShop is used to interface their microfluidic chips.
Different lengths and dimensions are available.
General
This capillary PEEK tubing is suited for various applications to interface ChipShop chips. It can be used with Tube Tuck connectors or ChipShop handling platforms.
- Capillary PEEK tubing
- Pipe length: 1.524 or 3.048 m (1/32“)
- Outer diameter (OD): 0.794 mm
- Inner diameter (ID): 0.127 or 0.508 mm
Content
1 roll of PEEK capillary tubing
Specifications
|
CS-10002000 |
CS-10002009 |
| Material |
PEEK |
| Tubing ID |
0.127 mm (0.005“) |
0.508 mm (0.02“) |
| Tubing OD |
0.794 mm (1/32“) |
| Length |
1.524 m |
3.048 m |
Documentation
Check the chemical compatibilities for this product here: PEEK - Chemical Compatibility Chart
