The Fluidic 163 Droplet Generator Chip by Microfluidic ChipShop, made from polycarbonate (PC) or Topas (COC, cyclic olefin copolymer), enables reliable and precise droplet generation. Mini Luer connections ensure leak-free inlet and outlet tubing junctions.
General

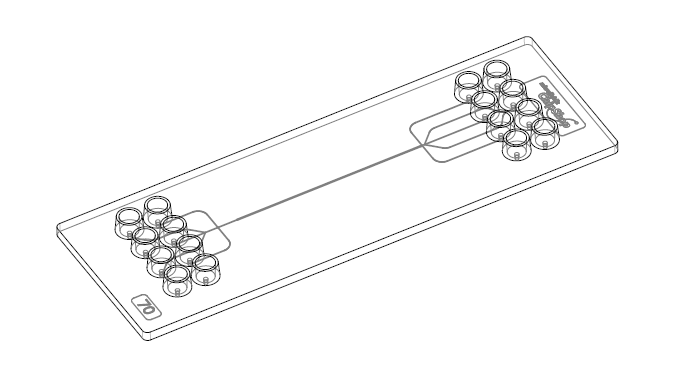

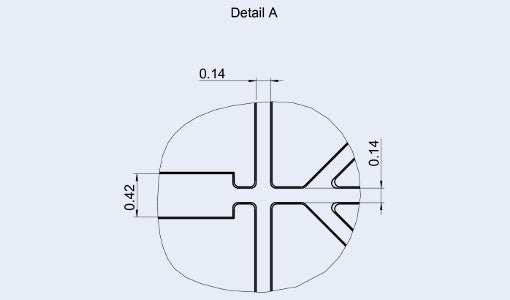

This chip features a double channel crossing in the droplet generation region and one 420 µm-wide droplet collection channel.
Made by injection molding, the ChipShop chips are convenient, cost-effective, and reliable for all your experiments:
-
Mini Luer connection molded with the chip: leak-free
-
Highly-resistant and optically clear material: PC (Polycarbonate) or Topas (COC, cyclic olefin copolymer)
-
Standard microscope glass slide size (75.5 mm x 25.5 mm x 1.5 mm)
These droplet generator chips have several inlets and outlets to fit all your experiments.
Content
1x Droplet generator chip with one channel design and mini Luer ports
Specifications
| Reference |
CS-10000004 |
CS-10000006 |
| Input and output channel width (µm) |
140 |
| Collection channel width (µm) |
420 |
| Channel depth (µm) |
140 |
| Lid thickness (µm) |
175 |
140 |
| Material |
PC |
Topas (COC) |
Documentation
Click to read more information about ChipShop chips material properties.
? Droplet generator 420 µm channel Fluidic 163 datasheet
