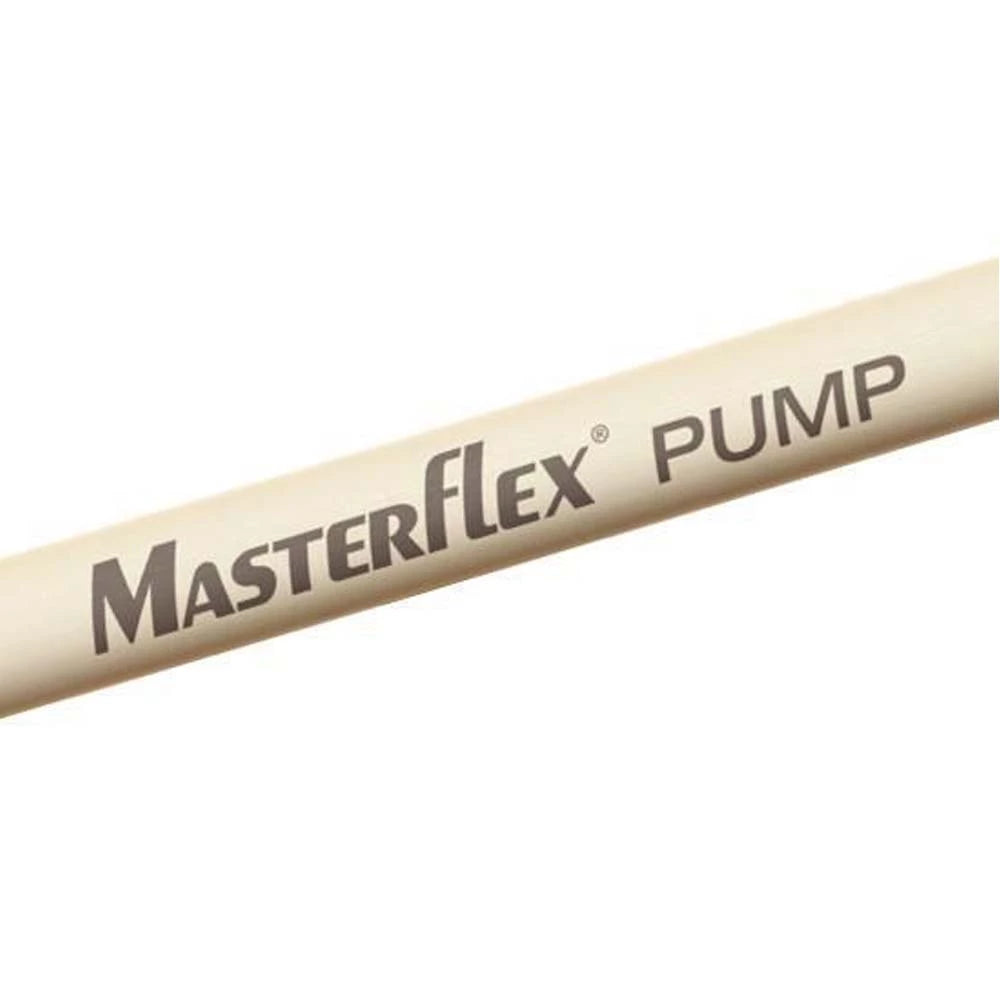

A set of 2-stop tubing for Masterflex L/S pump heads. Masterflex Chem-Durance Bio offers excellent chemical compatibility over a wide range of chemicals, along with long life for peristaltic pumping.
Compatible with any pump heads accepting 2-stop L/S tubing,
General
Masterflex Chem-Durance Bio tubing is formulated for biotech, pharma, and lab applications where excellent resistance to wear and chemicals are required.
- Pack of 2-stop tubing for L/S pump heads (Multichannel and Multichannel Cartridge), 4 or 8 per pack
- Precisely extruded for high accuracy and repeatability
- Excellent chemical resistance
- Long life and durability under pressure
- Meets FDA, RoHS, REACH, USP Class VI
- Low spallation, plasticizer-free inner liner
- Opaque
Sizes
Choose your tubing size according to your flow rate and peristaltic pump head. See the product pages of Masterflex pump heads for more information.
|
Precision |
High-Performance |
| |
L/S 13 |
L/S 14 |
L/S 16 |
L/S 25 |
L/S 15 |
L/S 35 |
| Tubing ID (mm) |
0.8 |
1.6 |
3.1 |
4.8 |
4.8 |
7.9 |
| Qty per pack |
8 |
8 |
8 |
8 |
4 |
4 |
Content
1x Pack of 2-stop L/S Chem-Durance Bio tubing (4 or 8/pack)
Specifications
A complete database of the chemical compatibility of Masterflex tubing can be found here.
|
Precision |
High-Performance |
| |
L/S 13 |
L/S 14 |
L/S 16 |
L/S 25 |
L/S 15 |
L/S 35 |
| Tubing ID (mm) |
0.8 |
1.6 |
3.1 |
4.8 |
4.8 |
7.9 |
| Max flow rate (mL/min) |
36 |
130 |
480 |
1000 |
1100 |
2600 |
| Max pressure |
2.7 bar (40 psi) |
2.7 bar (40 psi) |
2.7 bar (40 psi) |
2.4 bar (35 psi) |
2.7 bar (40 psi) |
2.4 bar (35 psi) |
| Temperature range |
-60 to 74 °C |
| Temperature range (dynamic) |
0 to 40 °C |
| Max vacuum |
660 mmHg |
660 mmHg |
660 mmHg |
| Regulatory approvals |
FDA, RoHS, REACH, USP Class VI |
| Sterilization methods |
EtO, gamma irradiation |
| Suction lift H2O |
8.8 m (29 ft) |
8.8 m (29 ft) |
Documentation
Check the chemical compatibilities for this product here: Chem-Durance Bio - Chemical Compatibility Chart
