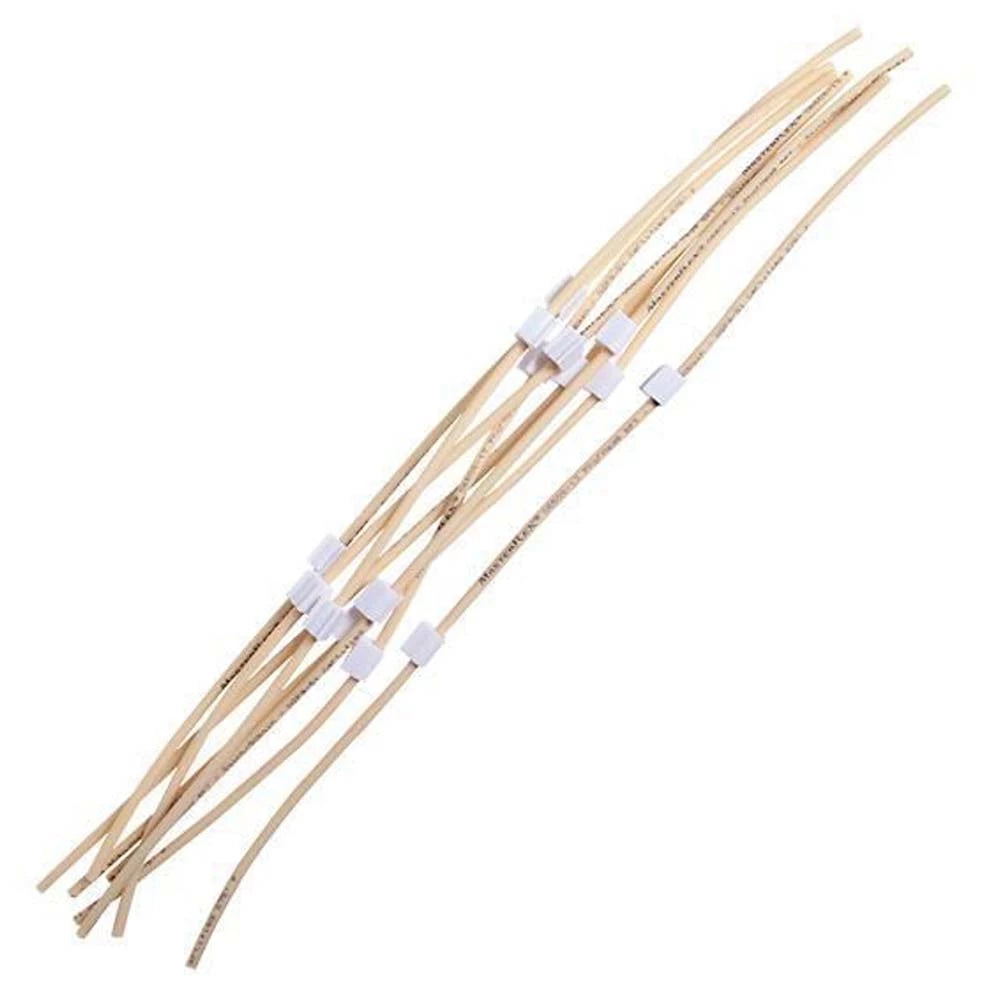

A set of 2-stop tubing for Masterflex L/S pump heads. Masterflex PharMed BPT is biocompatible and opaque to UV and visible light for light-sensitive fluids.
Compatible with any pump heads accepting 2-stop L/S tubing,
General
Masterflex PharMed BPT tubing for cell transfer and light-sensitive fluids.
- Pack of 2-stop tubing for L/S pump heads (Multichannel and Multichannel Cartridge), 4 or 8 per pack
- Precisely extruded for high accuracy and repeatability
- Extensive chemical compatibility
- Non-toxic, non-hemolytic
- Meets European Pharmacopoeia, FDA, REACH, RoHS, USP Class VI
- Non-DEHP, extremely low gas permeability
- Translucent
Sizes
Choose your tubing size according to your flow rate and peristaltic pump head. See the product pages of Masterflex pump heads for more information.
|
Precision |
High-Performance |
|
L/S 13 |
L/S 14 |
L/S 16 |
L/S 25 |
L/S 15 |
L/S 24 |
L/S 35 |
Tubing ID (mm) |
0.8 |
1.6 |
3.1 |
4.8 |
4.8 |
6.4 |
7.9 |
Qty per pack |
8 |
8 |
8 |
8 |
4 |
4 |
4 |
Content
1x Pack of 2-stop L/S PharMed BPT tubing (4 or 8/pack)
Specifications
A complete database of the chemical compatibility of Masterflex tubing can be found here.
|
Precision |
High-Performance |
|
L/S 13 |
L/S 14 |
L/S 16 |
L/S 25 |
L/S 15 |
L/S 24 |
L/S 35 |
Tubing ID (mm) |
0.8 |
1.6 |
3.1 |
4.8 |
4.8 |
6.4 |
7.9 |
Max flow rate (mL/min) |
36 |
130 |
480 |
1000 |
1100 |
1800 |
2600 |
Max pressure |
2.7 bar (40 psi) |
2.7 bar (40 psi) |
2.7 bar (40 psi) |
2.4 bar (35 psi) |
2.7 bar (40 psi) |
2.4 bar (35 psi) |
Temperature range |
-51 to 132 °C |
Temperature range (dynamic) |
-20 to 100 °C |
Max vacuum |
660 mmHg |
660 mmHg |
660 mmHg |
Regulatory approvals |
Non-DEHP, European Pharmacopoeia, FDA, REACH, RoHS, USP Class VI |
Sterilization methods |
EtO, gamma irradiation up to 2.5 Mrad |
Suction lift H2O |
8.8 m (29 ft) |
8.8 m (29 ft) |
