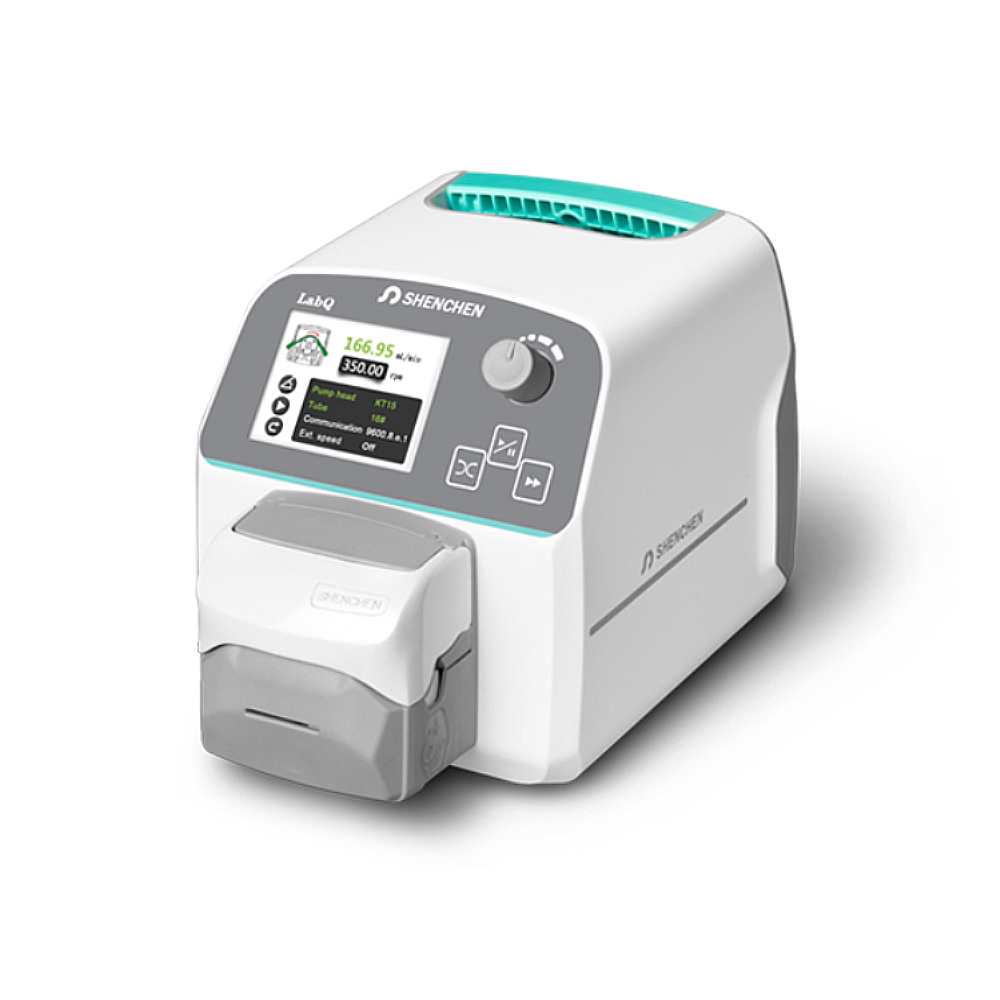

LabQ Compact Peristaltic Pump

The LabQ peristaltic pump is a small pump offering space-saving convenience and user-friendly use. Basic and cost-effective peristaltic pump with a 2.4 inch LCD screen display. Made in laboratory-grade ABS engineering plastic housing, this pump can reach flow rates down to a few µL/min and up to 326 mL/min.
Comes with the KT15 pump head, 1 channel.
Product SKU:
Outstanding Support

Support by a team of engineers & PhDs

Worldwide Express Shipping

Worldwide Express Shipping (delivery in 1-3 days for products in stock)

Money-Back Guarantee

Simplified Purchasing pay by invoice or credit card

649.50€
Ask an expert
Adding to cart… The item has been added

Complete Your Setup

Use the checkboxes to select the products you need.

Choose Options
Choose Options Close Close

Innofluid

Decrease Quantity of undefined
Increase Quantity of undefined
General

The LabQ peristaltic pump is a basic single-channel microfluidic flow control system for low budget requirements. It displays both the pump flow rate and motor speed on its 2.4 inch LCD screen and can be controlled with its knob and keypad or externally. Different features are available for basic commands: start, stop, change direction and fast forward for filling or emptying.

Features & Benefits

  • Compact pump to save valuable space on your benchtop,
  • 2.4 inch LCD screen displays motor speed and flow rate,
  • Flow rate ranges from 3.3 µL/min to 326.55 mL/min,
  • Digital knob and mechanical keypad control,
  • ABS engineering plastic shell and UV spray coating: anti-corrosion and anti-static,
  • Motor speed range of 0.1 to 350 rpm,
  • KT15 pump head with 1 channel adaptable to different tubing sizes,
  • Memory back up if power is lost,
  • RS485 interface, Modbus protocol,
  • CE & SGS certifications.

LabQ display



Tubing & Flow range

Tubing Tubing ID x WT (mm) Flow rate (mL/min)
13# 0.8 x 1.6 0.0033 - 11.55
14# 1.6 x 1.6 0.0156 - 54.60
19# 2.4 x 1.6 0.0286 - 100.10
16# 3.1 x 1.6 0.0477 - 166.95
25# 4.8 x 1.6 0.0933 - 326.55



Content

1x LabQ compact peristaltic pump with KT15 pump head

1x Power supply

No additional tubing is included with the pump.

Specifications
Performance specifications
Flow rate range 3.3 µL/min - 326.55 mL/min
Speed range 0.1 - 350 rpm
Speed resolution 0.1 rpm
External control Start/stop direction control (switch signal), 0-5 V, 4-20 mA, 0-10 V
Communication interface RS485 supports ModBus protocol (RTU mode)



Electrical specifications
Display 2.4 inch LCD screen
Control method Digital knob and mechanical keypad
Power supply Output: 24V/1.25A
Input: AC100V-240V, 50Hz/60Hz



Physical specifications
Drive dimensions (LxWxH) 188 x 128 x 135 mm
Drive weight 1.1 kg
Power consumption < 30 W
Working temperature 0-40 °C
Relative humidity < 80%, no condensation
IP rate IP31
Drive material ABS engineering plastic shell and UV spray coating
Certifications CE, SGS
Warranty 3 years

LabQ drawing dimensions
