Passive Herringbone Mixer Chip - Luer
Rated 3.5/5 based on 11 customer reviews

Passive Herringbone Mixer Chip - Luer

The Fluidic 187 Herringbone Micromixer Chip by Microfluidic ChipShop, made from PC or COP, is designed for effective liquid mixing using a herringbone-shaped channel. It features Luer connections for secure, leak-free junctions with inlet and outlet tubings.
Available immediately
€42.20
The Fluidic 187 Herringbone Micromixer Chip by Microfluidic ChipShop, made from PC or COP, is designed for effective liquid mixing using a herringbone-shaped channel. It features Luer connections for secure, leak-free junctions with inlet and outlet tubings.

ChipShop chips are convenient, cost-effective, and reliable for all your experiments:

  • Luer connection molded with the chip: leak-free
  • Highly-resistant and optically clear material: PC (Polycarbonate) or COP (Zeonor)
  • Standard microscope glass slide size

This micromixer is based on a herringbone-shaped channel to mix two liquids. The design of the lateral velocity of the liquids leads to efficient mixing. As multiple designs are on one chip, you can even connect them to improve the mixing result.

1x Passive herringbone mixer chip with Luer ports

Reference CS-10000019 CS-10000076
Channel width inlet (µm) 300
Channel width mixer (µm) 600
Channel width outlet (µm) 600
Channel depth (µm) 200
Lid thickness (µm) 175 188
Material PC
COP

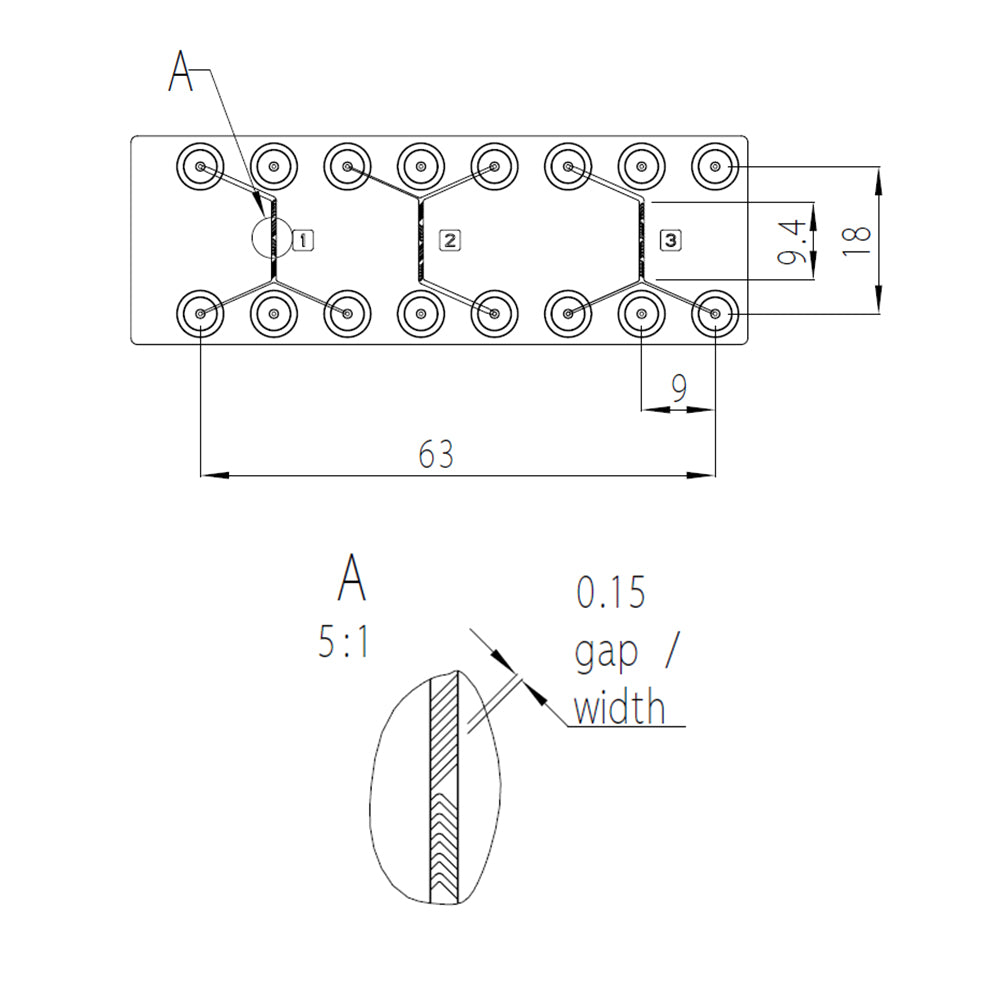

Dimensions and details of the passive herringbone mixer chip
