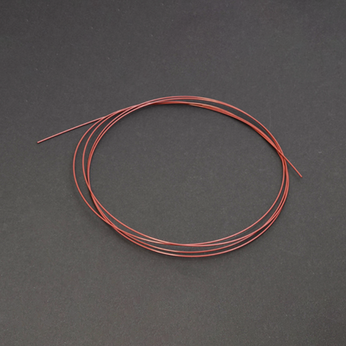

Tubing in PEEK for general lab use. PEEK is an inert fluoropolymer, with high chemical compatibility and a working temperature range of -50 °C up to +250 °C. This PEEK capillary tubing can be used in a microfluidic system for demanding applications with high pressure or aggressive fluids, but also as a fluidic resistance.
Roll of 1.5 m, 15 m, or 30 m. 1/16" (1.6 mm) outer diameter and various inner diameters.
General
This 1/32” OD capillary tubing is made of PEEK, a highly resistant polymer that is biocompatible, inert, and easily cut. It offers high chemical compatibility and a working temperature range of -50 °C up to +250 °C. Besides, this tubing can also be used for high-pressure applications or to add fluidic resistance.
Content
1x 1.5, 15 or 30 m roll of 1/16" (1.6 mm) OD PEEK capillary tubing
Specifications
- OD Tolerance: ± 0.0005” / 12.5 μm
- ID Tolerance: ± 0.0005” / 12.5 μm
| |
1560 |
1561 |
1535 |
1536 |
1531 |
1532 |
1533 |
1538 |
| Color |
Natural
|
Black
|
Red
|
Yellow
|
Natural
|
Orange |
Green |
Natural |
Tubing ID
|
65 µm (0.0025”) |
100 µm (0.004”) |
125 µm (0.005”) |
175 µm (0.007”) |
250 µm (0.010”) |
500 µm (0.020") |
750 µm (0.030") |
1.00 mm (0.040") |
| Tubing OD |
1.6 mm (1/16") |
1.6 mm (1/16") |
1.6 mm (1/16") |
1.6 mm (1/16") |
1.6 mm (1/16") |
1.6 mm (1/16") |
1.6 mm (1/16") |
1.6 mm (1/16") |
| Max. pressure rating |
483 bar (7000 psi) |
483 bar (7000 psi) |
483 bar (7000 psi) |
483 bar (7000 psi) |
483 bar (7000 psi) |
414 bar (6000 psi) |
276 bar (4000 psi) |
207 bar (3000 psi) |
Documentation
Check the chemical compatibilities for this product here: PEEK - Chemical Compatibility Chart
