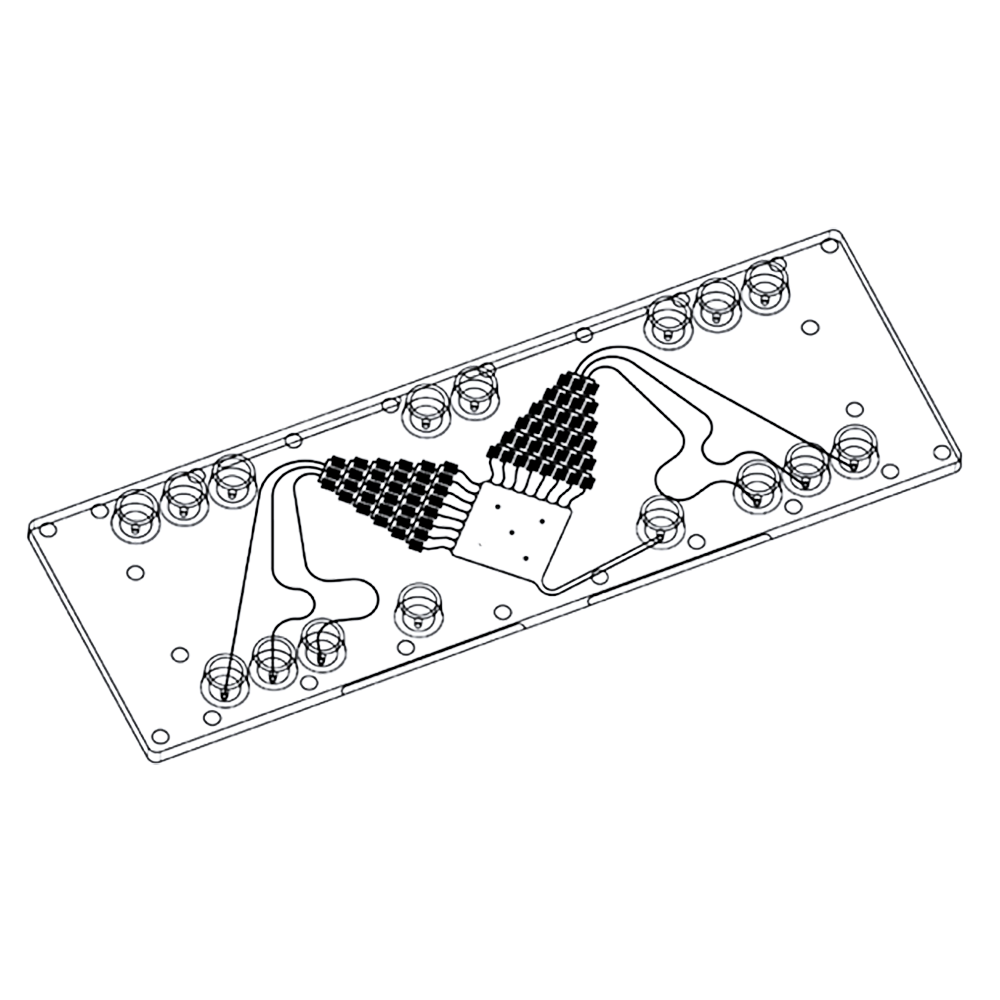

The Fluidic 1166 gradient generator chip manufactured by ChipShop is designed to generate complex chemical gradients by using an arrangement of serpentine channels and a 2D gradient chamber. The inlets and outlets with integrated mini Luer connections ensure leak-free junctions to the tubing. Manufactured in Topas (COC).
General
Made of Topas (COC), this ChipShop chip displays a 2D gradient chamber to enable the generation of concentration gradients. It can be used for various types of tests as it features three inlets on either side of the gradient chamber to perform highly complex experiments.
-
Mini Luer connections molded with the chip: leak-free
-
Highly-resistant and optically clear material: Topas (COC)
-
Standard microscope glass slide size
Content
1x Gradient generator 2D chip with mini Luer ports
Specifications
| Lid thickness |
140 µm |
| Material |
Topas (COC) |
| Number of inlets |
6 |
| Number of outlets |
1 |
Documentation
?Gradient generator 2D chip application note - Fluidic 1166
Click to read more information about ChipShop chips material properties.
