RS V Baffle Mixer - Glass Chip

This RS V baffle micromixer is designed for the easy and high throughput generation of nanoparticles or for the efficient mixing of two liquids. Made of glass, it comes with its 1/4-28 connection bar.
Product SKU:
LTF-012.00-4256
Outstanding Support

Support by a team of engineers & PhDs

Worldwide Express Shipping

Worldwide Express Shipping (delivery in 1-3 days for products in stock)

Money-Back Guarantee

Simplified Purchasing pay by invoice or credit card

825.00€
Available immediately
Ask an expert
Adding to cart… The item has been added

Complete Your Setup

Use the checkboxes to select the products you need.

Little Things Factory

Decrease Quantity of undefined
Increase Quantity of undefined
General

The RS V micromixer is a high-throughput microfluidic chip with dual inlets, specifically optimized for efficient nanoparticle production. Its key features include a no dead volume design, ensuring all fluid passes through the mixing channels with minimal waste. It is user-friendly and compact, making it ideal if space-saving solutions are valued. The chip also includes a 1/4-28 UNF connection bar, providing a standard, secure connection for ease of integration with the rest of your system. Simply connect the chip to your setup using 1/4-28 fittings for 1/16" OD or 1/8" OD tubing.

This baffle micromixer chip is convenient, cost-effective, and reliable for all your experiments:

  • Highly-resistant and optically clear glass
  • Standard 1/4-28 UNF threaded ports on its connection bar
  • Easy handling

This chip comes with its 1/4-28 connection bar in aluminum. To connect the chip, follow the steps below.

  • Position the chip: Slide the glass chip sideways into the connection bar using the guide groove. Align it so that the channel holes sit directly under the 1/4-28 threaded holes on the bar.
  • Secure an additional connector: Insert an additional fitting into any connection bar port that does not align with a channel opening on the chip. Align the chip with the connection bar and hand-tighten the connector.
  • Attach tubing: Attach each tube and fitting to its connection bar port, tighten them by hand until secure. Avoid overtightening; the torque limit is 0.4 Nm.
  • The pressure created by the fittings will secure the chip in the connection bar.

Instructions for the connection bar

Content

1x RS V baffle mixer chip in glass

1x Female 1/4-28 UNF connection bar

Specifications
Inlets 2
Mixer type S
Volume 1 mL
Cross-section 0.7 mm
Permitted particle size 100 µm

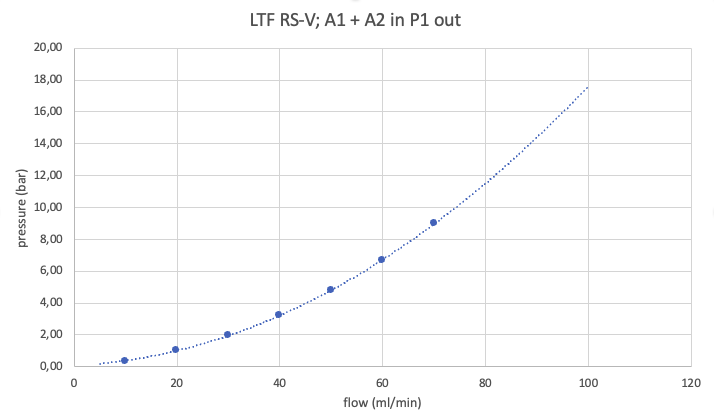

Flow rate water @ 3 bar 37 mL/min
Max pressure resistance 15 bar
Chip dimensions 115 x 60 x 6 ± 0.5 mm
Chip material Glass
Connection bar dimensions 20 x 15 x 91 mm
Connection bar material Anodized aluminum
Connection bar ports Female 1/4-28 UNF

M5 threads available on each side of the bar to attach it to your system.

RS V Baffle Mixer - Glass Chip

Documentation

Wei Xu, Yuta Kadoya, Kaito Sennari, Waliul Islam, Tianli Zhang, Tomohiro Sawa, Fumika Akizuki, Hisaaki Hirose, Shiroh Futaki, Yukio Fujiwara, Yoshihiro Komohara, Takuro Niidome. (2023). Disulfiram encapsulated in polymer nanoparticles ameliorates thioacetamide-induced liver injury. Journal of Drug Delivery Science and Technology, 88, 104981, ISSN 1773-2247. https://doi.org/10.1016/j.jddst.2023.104981.
