Stemi 305 Compact Stereo Microscope
SKU:
ZE-Stemi305
MSRP:
Was:
Now:
$2,386.91
(You save
)
Stemi 305 is a compact and easy-to-use stereo microscope with 5:1 zoom (from 8x to 40x) and integrated LED illumination (brightfield and darkfield). It is ideal for daily observations of a microfluidic chip.
Observe your samples in real 3D, and document your research easily.
General
Your Stereo Microscope with Integrated Illumination & Documentation
Stemi 305 is your compact Greenough stereomicroscope with 5:1 zoom. Equally suited to the biology classroom, research lab or on the industrial shop floor. Observe your samples as they are: in real 3D, distortion free and crisp in contrast, with no preparation required. Then share your images, whenever you want.
Profit from an easy-to-use microscope, where everything is integrated: long-life LED illumination, reflected and transmitted light and documentation.
Highlights
- Everything integrated into Stemi 305 stand – no additional cables or boxes.
- Easily select and mix the integrated LED illuminations (vertical and oblique reflected light, so as transmitted light)
- Large working distance and object fields – examine whole living samples.
- Shadow-free, homogeneous illumination provided by the vertical LED spot of Stemi 305 as well as the flexible alignment of the microscope with tilting arm stand U.
Created for Your Applications
- Observe and identify biological samples in the classroom, and in the lab.
- Investigate the morphology of plant organs in your practical botanical work.
- Study worms, snails, spiders, frogs, crabs, eggs, and larvae for Zoology.
- Examine the fruiting bodies of large fungi to differentiate between edible mushrooms and inedible look-alikes.
- Perform detailed investigations or surgical procedures in your veterinary work with the shadow-free, integrated vertical illumination and flexible alignment of the tilting arm stand.
- Inspect or repair printed circuit boards in electrostatic protected areas. Profit from stand versions with ESD features.
- Easily detect scratches on metal surfaces using the segmentable ringlight
PDF Brochure
Specifications
Technical Data
All Stemi 305 zoom bodies are equipped with an integrated vertical illumination to observe holes or cavities
| Operation concept | Stereo microscope, Greenough design with 5:1 zoom range |
| Zoom bodies |
Stemi 305 binocular (all zoom bodies incl eyepieces 10×/23 Br. foc)
|
| Magnification range |
8.0× to 40× with basic version (10× eyepieces), Using interchangeable optics, all magnifications from 4× to 200× are accessible |
| Max. resolution | 200 Lp/mm basic version; up to 400 Lp/mm with interchangeable optics |
| Working distance | 110 mm basic version; up to 185 mm using interchangeable optics |
| Maximum object field | 29 mm basic version; up to 58 mm using interchangeable optics |
| Interface to Stemi mount | 76 mm (international) |
| Interchangeable eyepieces | PL10x/23 Br. foc (included), PL16×/14 Br. foc, W25×/10 foc |
| Stemi carriers for column 32 mm | Stemi mount with drive, stemi mount tiltable 0–90° |
| Bench top stands (*= dimensions as Model K) |
Model K Edu, 200×310 mm, column 250 mm with drive, travel 145 mm Reflected light electronics, flat TL base (bright field/dark field) |
| Boom stands | Model A; ball bearing double-arm model SDA; tilting arm model U |
| Stages | Sliding stage circular, ball-and-socket stage, rotating polarization stage |
| LED illuminators K | Spot K LED, double spot K (selfcarrying), segmentable ringlight K. |
| Direct LED illuminators | VisiLED ringlights, segmentable; double arm LED spot for column 32 |
| Cold light sources | CL4500 LED (CRI 90) with various light guides for highest brightness or special contrasts, eg goosenecks, ringlights, line or area light, diffusor |
| Transmitted light illuminators | Transmitted light mirror accessory for stand N (BF, DF, oblique) |
| Polarization | Polarization filters for ringlights, spots and transmitted light units |
Content
Microscope Body Stemi 305
- Greenough system
- Manually operable zoom 5:1 (0.8x...4.0x) on both sides
- Fixed zoom clickstops 0.8x-1x-2x-3x-4x
- Free working distance 110 mm
- Viewing angle 45° with adjustable interocular distance 55...75 mm
- Eyepiece mount 30 mm with maximum field number 23 mm
- Mount D=76 mm for Stemi mount/Mount S
- Interface D=66 mm for illuminators
- Thread M52 for front optics or analyzer
- Integrated near-vertical LED illumination (IVI) for stands K EDU/LAB/MAT, stand M LED, controller K LED
- Additionally included: Eyepieces 10x/23 Br. foc. - Spiral cable RJ12
Eyepiece eyecup (x2)

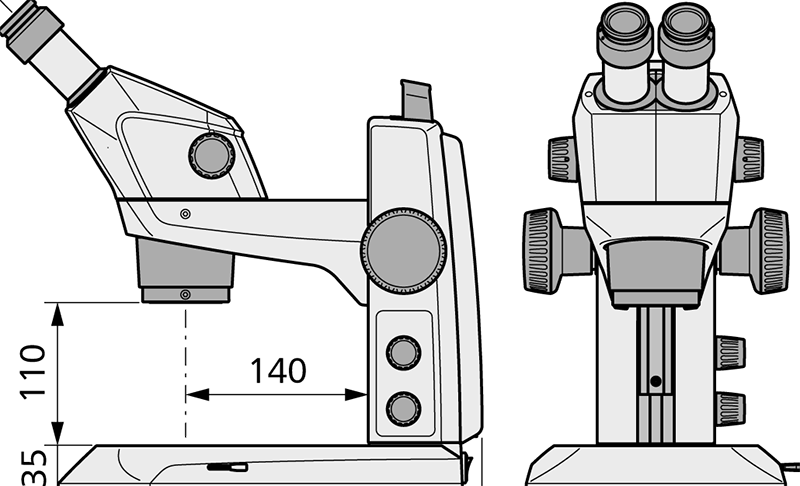

Stand K EDU
- Stand base D310xW200xH35 mm
- Working surface D195xW160 mm
- Interface d=84 mm for stages
- Column 250 mm with drive and handle, lifting range 145 mm
- Stemi mount d=76 mm, load capacity 5 Kg, adjustable friction
- 2x sockets for IVI and illuminator K LED
- RL control for on/off/dimming - ESD protection feature: Antistatic surface, grounding socket
- Integrated power unit 12V DC 24W/100...240V AC/50...60Hz
Additionally included:
- Glass and B/W plastic plate D=84x5 mm
- Country-specific power cable EURO C8
- Dust cover
