OB1 Microfluidic Droplet Pack
Rated 3.5/5 based on 11 customer reviews

OB1 Microfluidic Droplet Pack

Making droplets has never been easier with the Elveflow Microfluidic Droplet Pack! Based on the high-precision OB1 Mk3+ pressure controller, this bundle includes everything you need to generate monodisperse droplets out-of-the-box.
The Droplet Pack is completed by a user guide with detailed instructions to build your setup and generate droplets of the right size and frequency!
Available in two versions: Small (10-40 µm droplets) and Large (50-80 µm droplets).
Average lead time: 3 weeks
€10,990.00
Making droplets has never been easier with the Elveflow Microfluidic Droplet Pack! Based on the high-precision OB1 Mk3+ pressure controller, this bundle includes everything you need to generate monodisperse droplets out-of-the-box.
The Droplet Pack is completed by a user guide with detailed instructions to build your setup and generate droplets of the right size and frequency!
Available in two versions: Small (10-40 µm droplets) and Large (50-80 µm droplets).

Droplet generation made easy

The Elveflow Microfluidic Droplet Pack was designed to ease your daily lab work, by providing a complete and evolutive solution to generate droplets out-of-the-box!

  • Unbox your Droplet Pack
  • Install your system following the step-by-step User Guide
  • Generate your droplets using detailed protocols and characterized microfluidic chips

Based on the high-precision OB1 Mk3+ pressure controller and MFS flow sensors, this pack comes with all the accessories you need to start generating reproducible and monodisperse (PDI <2%) water-in-oil droplets immediately.

Droplet Pack features

Two Droplet Pack versions are available, based on the droplet range:

  • Small: for droplets between 10 and 40 µm
  • Large: for droplets between 50 and 80 µm

Each pack contains the following:

  • 1x OB1 Mk3+ flow controller with 2 channels (oil phase / water phase)
  • 2x MFS flow sensors (for oil and water)
  • 2x sets of flow resistors (for stable and accurate flow control)
  • 2x ChipShop microfluidic droplet generators
  • All necessary reservoirs and tubings

Created by a team of experts in droplet-microfluidics, the User Guide included in this pack details all the steps to build your setup and generate droplets of a defined size. Just follow the steps to generate droplets meeting your project's needs!

The Droplet Pack is evolutive: start with characterized microfluidic chips now, and use the same system with any other microfluidic chip.

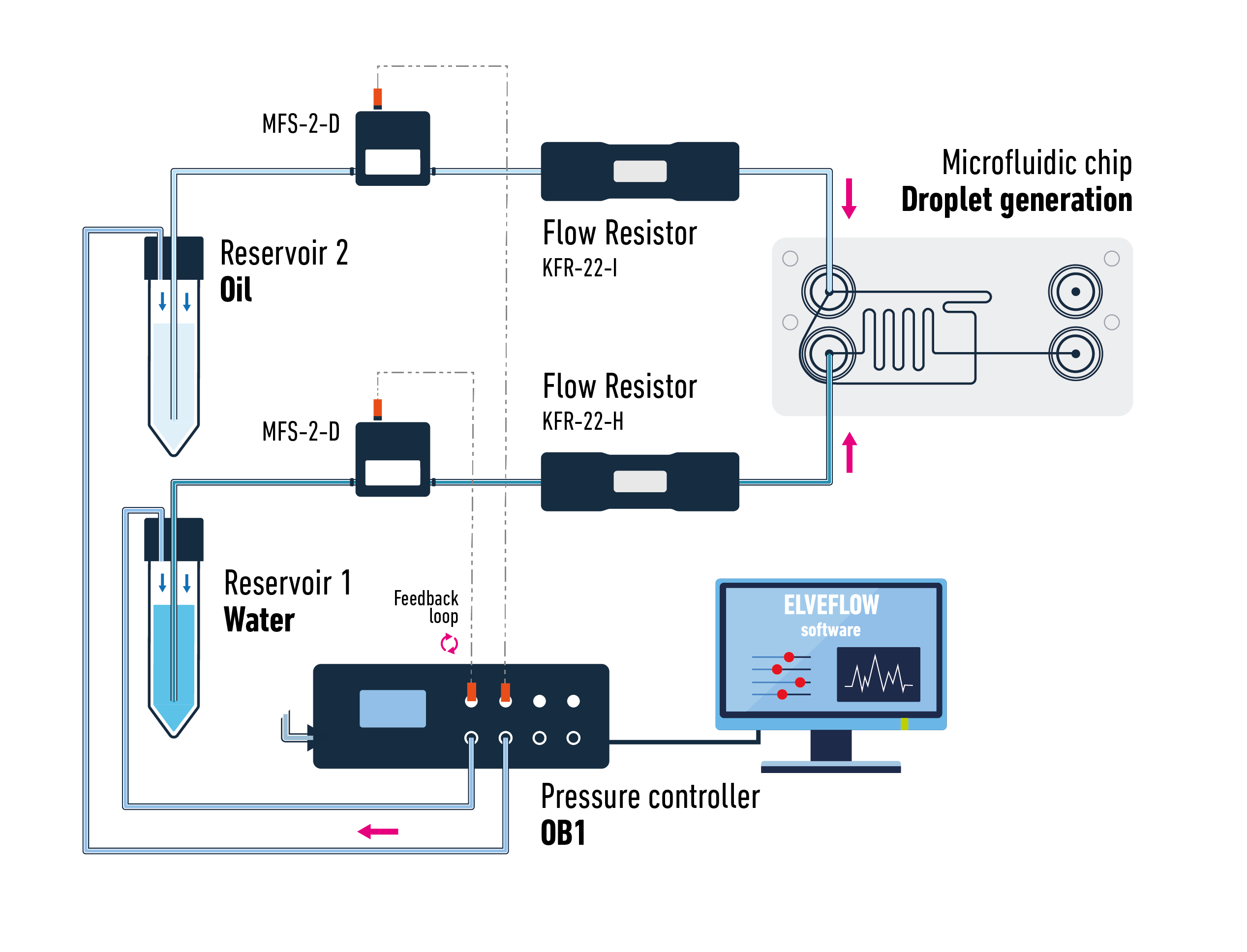

Elveflow Droplet Pack schematic

Schematic of the Droplet Pack Large (for droplets of 50-80 µm). Only the flow restrictors and MFS change in the Small version, to get the best performances out of your microfluidic system.

Small version Large version

1x MFS2 flow sensor

1x MFS3 flow sensor

2x MFS2 flow sensors

1x Flow restrictor KFR-22-H

1x Flow restrictor KFR-23-I

1x Flow restrictor KFR-22-H

1x Flow restrictor KFR-22-H

1x OB1 Mk3+ 2 channels (0-2 bar)
ESI control and automation software

2x Reservoirs 1.5 mL Eppendorf

2x Reservoirs 15 mL Falcon

2x Reservoirs 50 mL Falcon

1x ChipShop Fluidic 440

1x ChipShop Fluidic 947

1x WallE reservoir holder

1x 10 mL FluoSurf mix 2% w/w in HFE7500

1x Accessories starter pack

1x User guide with detailed instructions to build your setup and generate droplets out-of-the-box

A pressure source is required to use the OB1 pressure controller (not included in the Droplet Pack).

Droplet size and frequency specifications



Droplet size (µm)

Droplet volume (pL)

Frequency (Hz)

SMALL

Fluidic 947 chip

10

15.7

910-1270

15

23.5

590-752

20

31.4

385-512

30

47

109-417

LARGE

Fluidic 440 chip

50

78.5

75-367

60

94

69-333

70

109.9

43-145

80

251.2

13-57



Instruments & accessories specifications

OB1 Mk3+ flow controller - 2 channels 0-2 bar: See full specifications here

MFS flow sensors: See full specifications here

FluoSurf 2 w/w% surfactant in HFE-7500: See full specifications here

ChipShop Fluidic 947 and Fluidic 440:

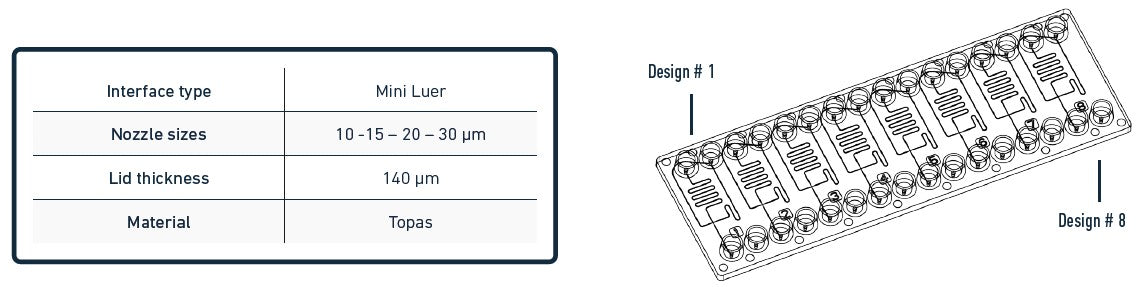

Fluidic 947 specifications

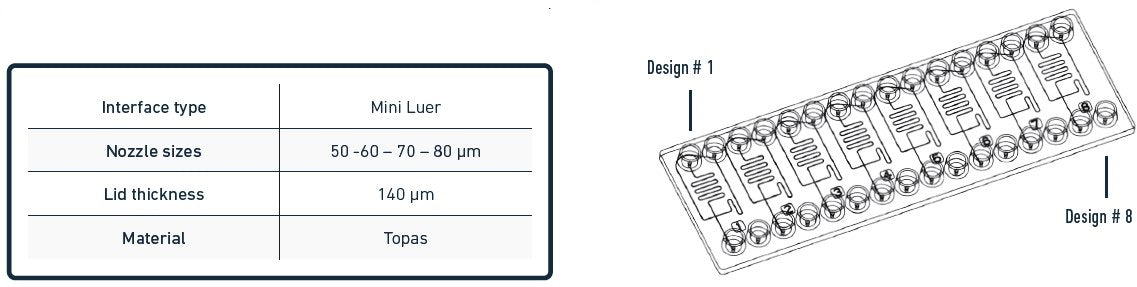

Fluidic 440 specifications
